Copper-Bonded Ground Rod, Pointed
FEATURES
- 99.9% pure electrolytic copper coating
- Molecular bond to nickel-sealed high strength steel core
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- Minimum copper coating of 10 mils on rods listed to UL® 467
- ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
SPECIFICATIONS
Material: Copper-Bonded Steel
Tensile Strength: 552 MPa Min

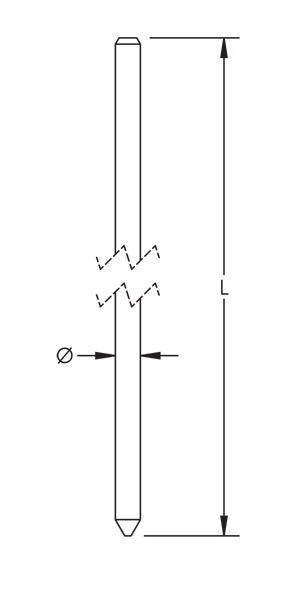

| Ground Rod Diameter, Nominal | Ground Rod Diameter, ActualØ | LengthL | Plating Thickness | Unit Weight | UPC Label | Complies With | Certifications |
| 3/8" | 9.0 mm | 1,200 mm | 254 µm | 0.57 kg | No | – | – |
| 3/8" | 9.0 mm | 1,500 mm | 254 µm | 0.73 kg | No | – | – |
| 3/8" | 9.0 mm | 1,800 mm | 254 µm | 0.90 kg | No | – | – |
| 3/8" | 9.0 mm | 2,400 mm | 254 µm | 1.23 kg | No | – | – |
| 1/2" | 12.7 mm | 900 mm | 254 µm | 0.98 kg | No | – | – |
| 1/2" | 12.7 mm | 1,200 mm | 254 µm | 1.26 kg | No | – | – |
| 1/2" | 12.7 mm | 1,500 mm | 254 µm | 1.57 kg | No | – | – |
| 1/2" | 12.7 mm | 1,500 mm | 330 µm | 1.67 kg | No | – | – |
| 1/2" | 12.7 mm | 1,800 mm | 254 µm | 2.01 kg | No | – | – |
| 1/2" | 12.7 mm | 2,400 mm | 254 µm | 2.51 kg | No | ANSI®/NEMA® GR1 | UL |
| 1/2" | 12.7 mm | 3,100 mm | 254 µm | 3.11 kg | No | ANSI®/NEMA® GR1 | CSA, cULus |
| 1/2" | 12.7 mm | 3,100 mm | 330 µm | 3.35 kg | No | ANSI®/NEMA® GR1 | cULus |
| 5/8" | 14.2 mm | 900 mm | 254 µm | 1.13 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 1,200 mm | 254 µm | 1.54 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 1,200 mm | 330 µm | 1.54 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 1,500 mm | 254 µm | 1.92 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 1,500 mm | 330 µm | 2.04 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 1,800 mm | 254 µm | 2.30 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 1,800 mm | 330 µm | 2.45 kg | No | IEC® EN 62561-2 | – |
| 5/8" | 14.2 mm | 2,400 mm | 254 µm | 3.07 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | UL |
| 5/8" | 14.2 mm | 2,400 mm | 330 µm | 3.08 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | UL |
| 5/8" | 14.2 mm | 3,100 mm | 254 µm | 3.85 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | CSA, cULus |
| 5/8" | 14.2 mm | 3,100 mm | 330 µm | 3.83 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | cULus |
| 5/8" | 14.2 mm | 3,700 mm | 254 µm | 4.54 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | cULus |
| 5/8" | 14.2 mm | 4,600 mm | 254 µm | 5.78 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | cULus |
| 3/4" | 17.3 mm | 1,200 mm | 254 µm | 2.55 kg | No | IEC® EN 62561-2 | – |
| 3/4" | 17.3 mm | 1,500 mm | 254 µm | 2.81 kg | No | IEC® EN 62561-2 | – |
| 3/4" | 17.3 mm | 1,800 mm | 254 µm | 3.40 kg | No | IEC® EN 62561-2 | – |
| 3/4" | 17.3 mm | 2,400 mm | 254 µm | 4.56 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | UL |
| 3/4" | 17.3 mm | 2,400 mm | 330 µm | 4.54 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | UL |
| 3/4" | 17.3 mm | 3,100 mm | 254 µm | 5.72 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | CSA, cULus |
| 3/4" | 17.3 mm | 3,100 mm | 330 µm | 5.63 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | cULus |
| 3/4" | 17.3 mm | 3,700 mm | 254 µm | 6.77 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | cULus |
| 3/4" | 17.3 mm | 4,600 mm | 254 µm | 8.39 kg | No | IEC® EN 62561-2, ANSI®/NEMA® GR1 | cULus |
| 1" | 23.2 mm | 3,100 mm | 254 µm | 10.00 kg | No | ANSI®/NEMA® GR1 | CSA, cULus |
For rods to be listed to UL® 467, they must be at least 8' (2.43 m) in length.
IEC® EN 62561-2 supercedes EN 50164-2.
Additional lengths available.
