Externally mounted (non-invasive) sensors for closed pipes

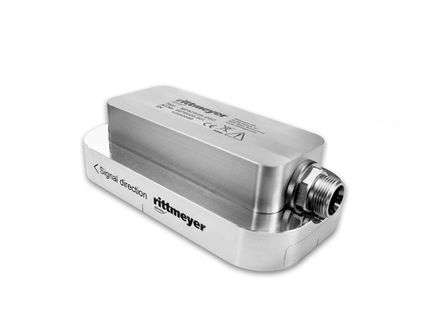

RISONIC clamp-on

The clamp-on sensor installation on the outer pipe wall allows for non-invasive, cost-effective, and low maintenance flow measurements using ultrasound technology. For temporary measurements, the mounting frame can remain at the measuring point for regular flow checks.

• Easy placement: Magnetic attachment of the sensor
• Alternative adhesive attachment
• Ideal for temporary measurements
• Installation possible in partially exposed pipes as well

Specifications

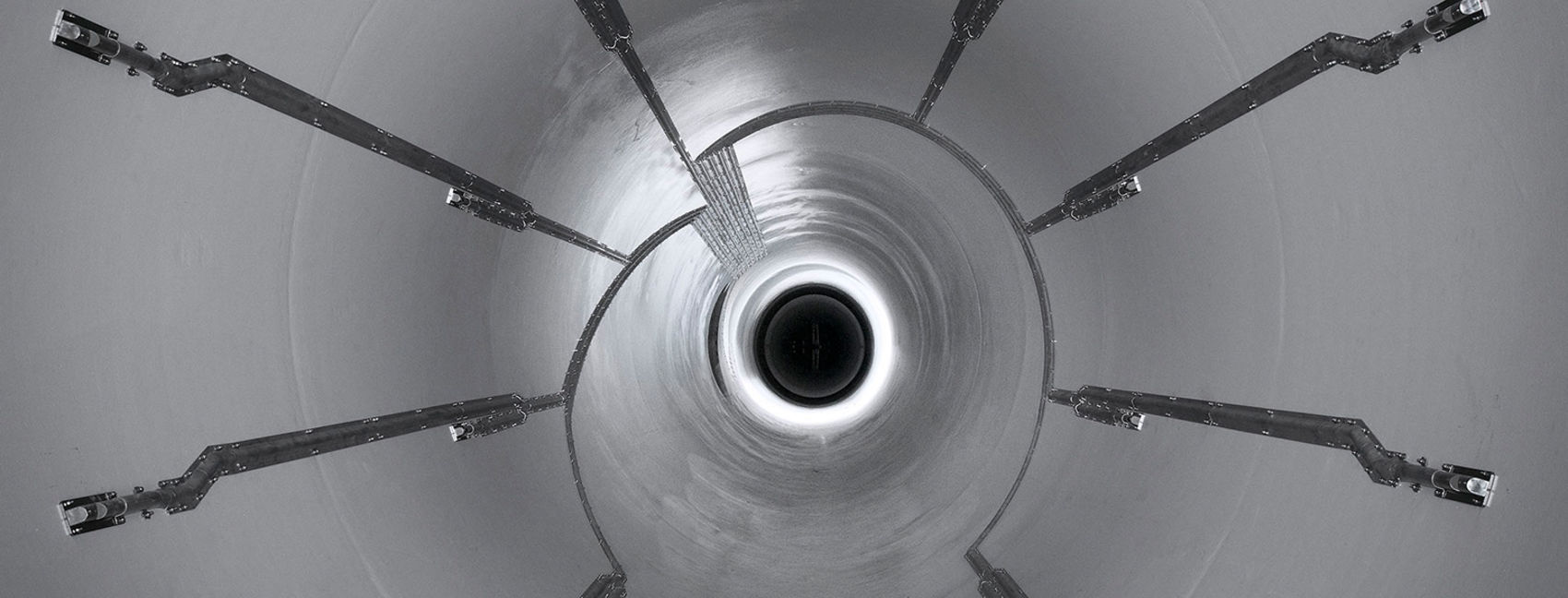

Firmly mounted sensors for closed pipes

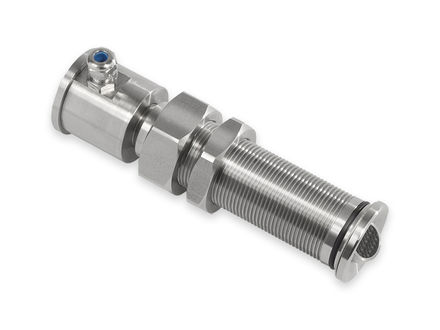

MFATAxx

RISONIC modular type A pipe sensor for applications in filled or partially filled pipes with a 0.75 – 35 m diameter.

• Mounted on the inside
• Exchangeable under pressure
• Minimal protrusion
• Oscillating frequency: 1 MHz / 500 kHz
• Range up to 80 bar (higher pressures on request

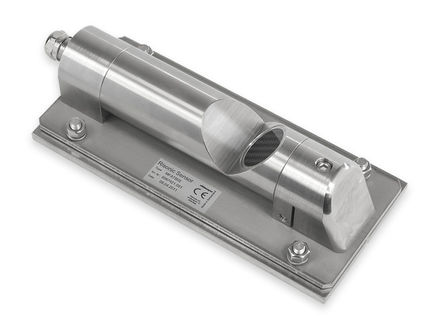

MFATBxx

RISONIC modular type B pipe sensor for applications in open channels and in filled or partially filled pipes with a 0.75 – 35 m diameter.

• Installed inside the pipe
• Hydrodynamic profile
• Oscillating frequency: 1 MHz / 500 kHz
• Range up to 80 bar (higher pressures on request)

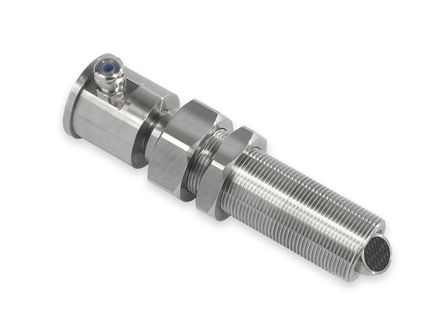

MFATCxx

RISONIC modular type C pipe sensor for applications in filled or partially filled pipes with a 0.20 – 35 m diameter.

• Installation and access on the outside
• Exchangeable under pressure
• Minimal protrusion
• Oscillating frequency: 1 MHz / 500 kHz
• Range up to 80 bar (higher pressures on request

Sensors for open channels and pressure tunnels

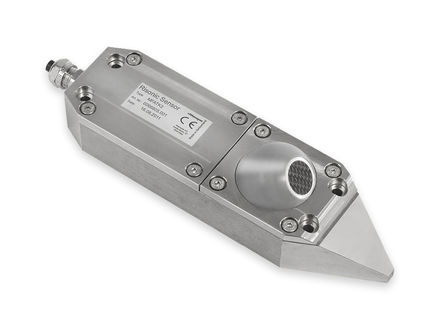

MFATKx

RISONIC modular type K channel sensor for open, narrow channels with widths ranging from 0.18 - 10 m.

• Very robust
• Path angle fully adjustable
• Hydrodynamic profile
• Oscillating frequency: 1 MHz
• Range up to 10 bar

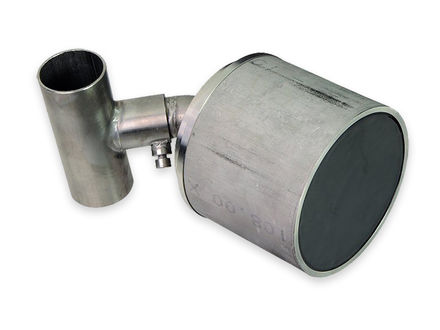

MFATK02

RISONIC modular type K02 channel sensor for open, wide channels with widths ranging from 10 – 135 m.

• Very robust
• Path angle fully adjustable
• Hydrodynamic profile
• Oscillating frequency: 200 kHz
• Range up to 10 bar
