Level Sensors
Designed for harsh environments: The level sensors of the MPx series are robust and durable. These advanced piezoresistive pressure transmitters deliver a variety of measurements, such as surface water levels or well levels, and are a perfect addition to the Rittmeyer measurement systems.

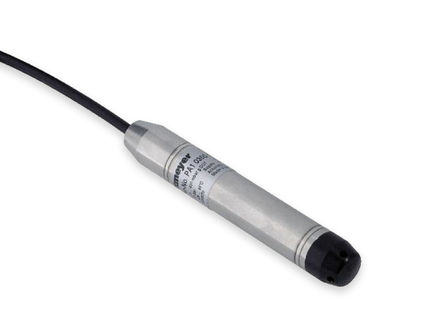

MPA immersion probe
- Accuracy 0.25% FS
- 2 wire technique
- Output signal 4...20 mA

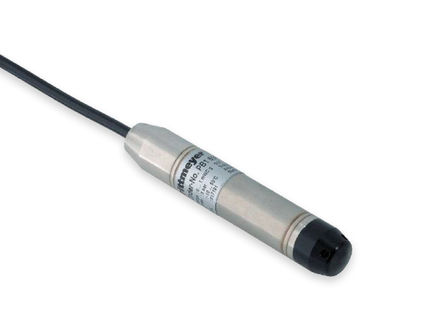

MPB immersion probe
- Accuracy 0.1% FS
- 2 wire technique
- Adjustable operating range, programmable attenuation of the power output
- Adjustable compensation for drift and/or steepness
- Output signal 4...20 mA

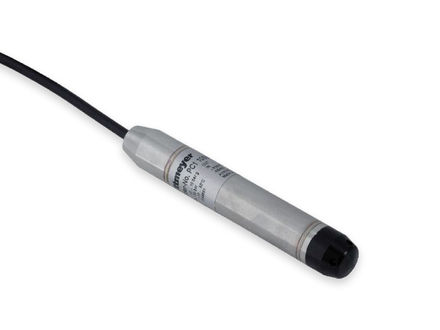

MPC immersion probe
- Accuracy 0.1% FS (optional: 0.05% FS)
- 5/6 wire technique
- Programmable
- Output signal 4...20 mA and digital (Modbus RTU)

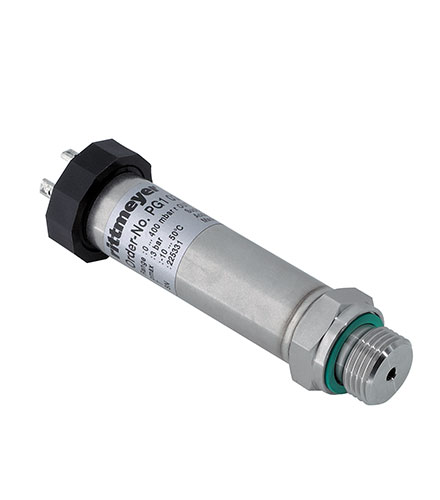

MPG pressure transmitter
- Accuracy 0.1% FS
- 2 wire technique
- Programmable
- Output signal 4...20 mA

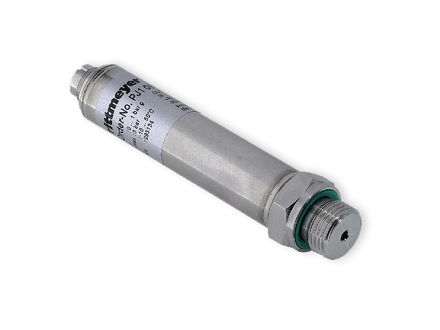

MPJ pressure transmitter
- Accuracy 0.1% FS (optional: 0.05% FS)
- 5/6 wire technique
- Programmable
- Output signal 4...20 mA and digital (Modbus RTU)
