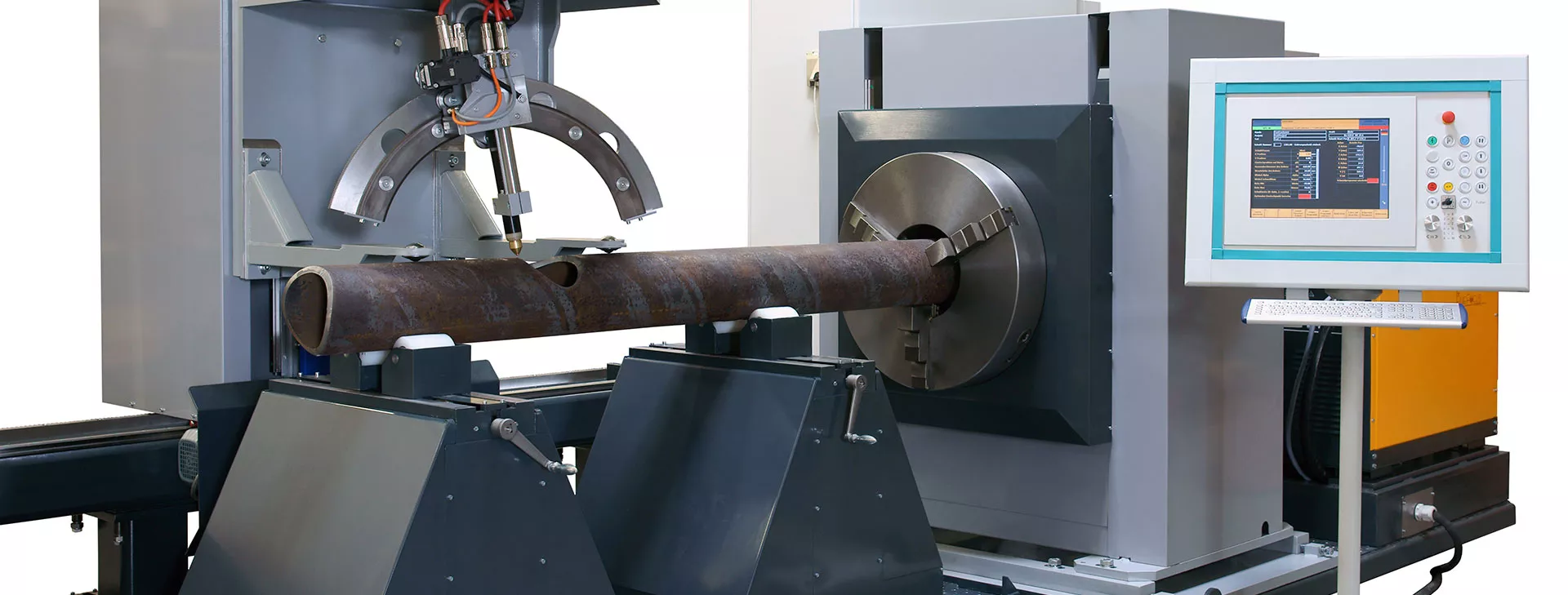

The RB Compact series comprises standardized, compact machines with the key basic functions for round pipes up to a diameter of 812 mm and a pipe weight of up to 4 tonnes. The machines are all equipped with 6 CNC-controlled axes. Detailed information can be supplied on request.

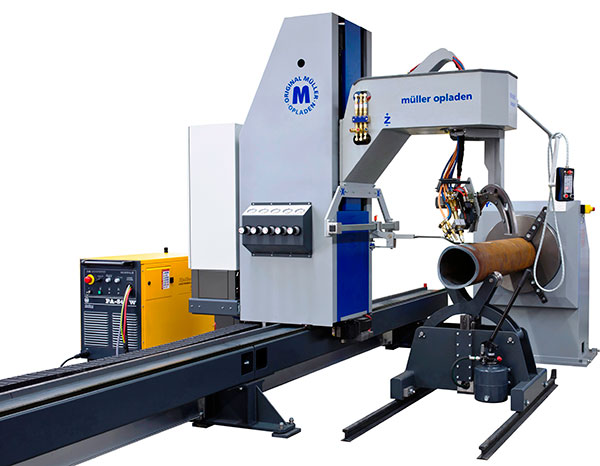

with 6 CNC axes for round pipes with a maximum diameter of 610 mm inclusive of the Kjellberg PA-S45 W plasma cutting system, oxy-fuel cutting system, fixed chuck and height-adjustable, hydraulic scissor-type pipe carriage

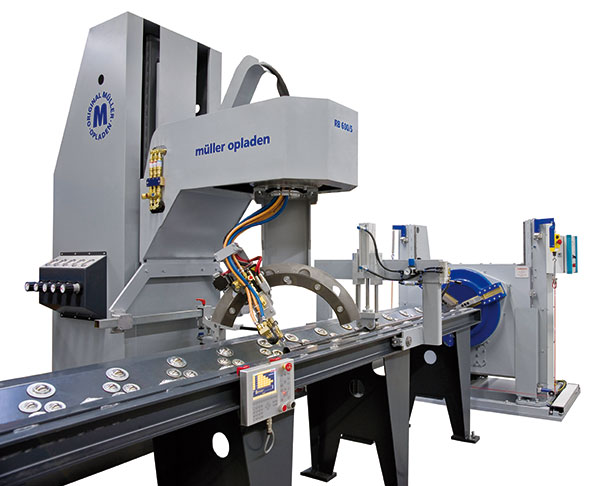

with 6 CNC axes for round pipes with a maximum diameter of 812 mm inclusive of the Hypertherm HPR130XD plasma cutting system, oxy-fuel cutting system, height-adjustable chuck, manual ball gutter and hold-down
| Technical information / Machine series: | RB 400/6 Compact | RB 600/6 Compact | RB 800/6 Compact |
|---|---|---|---|
| Weight of standard machine in kg: | 4,500 | 5,000 | 5,500 |
| Number of CNC axes: | 6 | 6 | 6 |
| Max. workpiece weight in kg: | 4,000 | 4,000 | 4,000 |
| Min. - max. clampable round pipe diameter in mm: |
50 - 406 | 50 - 610 | 50 - 812 |
| Max. size of chuck opening in mm: | - | - | - |
| Min. - max. clampable square & rectangular pipes dimension in mm: |
- | - | - |
| Min. - max. clampable beams width in mm: |
- | - | - |
| Min. - max. clampable diameter for dished ends in mm: |
- | - | - |
| Min. - max. cuttable workpiece length in mm: | 300** - 12,000 | 300** - 12,000 | 300** - 12,000 |
| Min. - max. wall thickness in mm for cutting with oxy-fuel /plasma in mm: * |
5-60 / 5-45 | 5-60 / 5-45 | 5-60 / 5-45 |
| Max. torch angle in °: *** | +/- 60 / 45 | +/- 60 / 45 | +/- 60 / 45 |
* bei vertikaler Brennerstellung
** mit Zusatzspannvorrichtung bis zu 150 mm (abhängig von Rohrparametern)
*** bis zu 55° beim Einsatz spezieller Plasmaschneidstromquellen
