Our Heavy-Duty series comprises machines for round pipes and for dished ends with a maximum diameter of up to 4,064 mm and up to a workpiece weight of 30 tonnes. The technology is based on that of the RB Classic series. Owing to the large workpiece dimensions and weights, the machines of this series have an extremely solid design. The machines are all equipped with 6 CNC-controlled axes
Detailed information can be supplied on request.

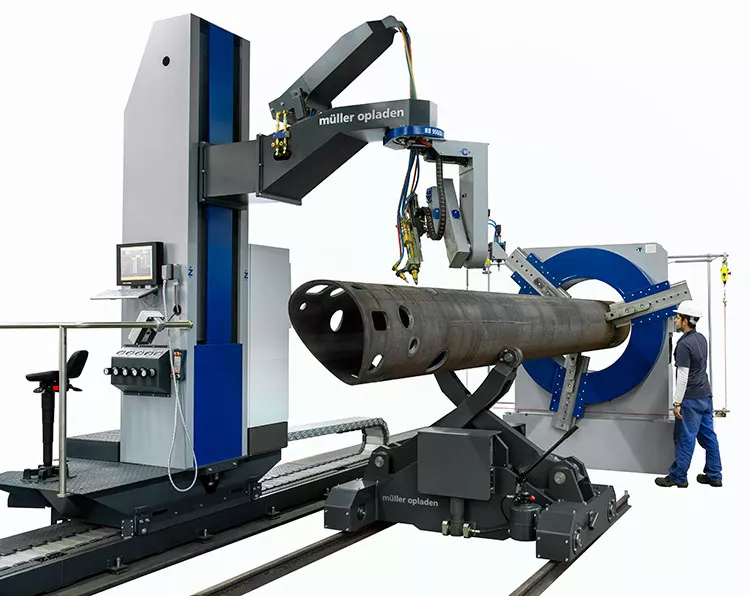

with 6 CNC axes for round pipes with a maximum diameter of 2,540 mm inclusive of oxy-fuel cutting system, fixed chuck and height-adjustable, hydraulic pipe carriage

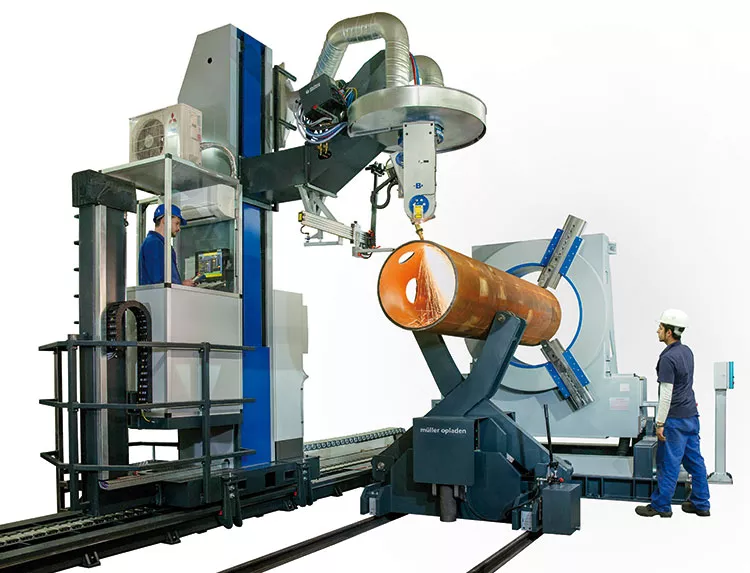

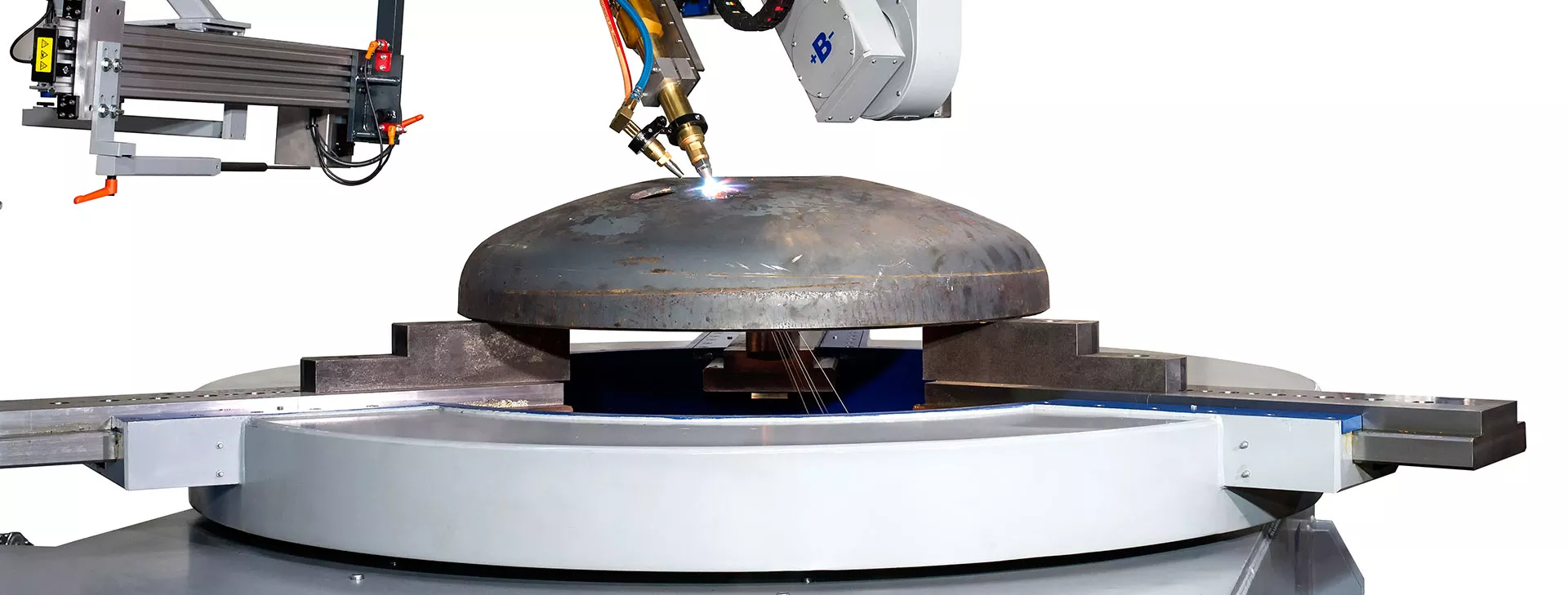

with 6 CNC axes for round pipes with a maximum diameter of 3,505 mm and dished ends with a maximum diameter of 3,505 mm inclusive of the Hypertherm HPR 400 plasma cutting system, oxy-fuel cutting system, height adjustable operator stand, tilting chuck and hydraulic pipe carriages
| Technical information / Machine series: | RB 950/2000/6 Heavy-Duty |
RB 1200/2500/6 Heavy-Duty |
RB 1200/3000/6 Heavy-Duty |
RB 1500/3500/6 Heavy-Duty |
RB 1500/4000/6 Heavy-Duty |
|
|---|---|---|---|---|---|---|
| Weight of standard machine in kg: | 18,000 | 22,000 | 24,000 | 26,000 | 28,000 | |
| Number of CNC axes: | 6 | 6 | 6 | 6 | 6 | |
| Max. workpiece weight in kg: | 30,000 | 30,000 | 30,000 | 30,000 | 30,000 | |
| Min. - max. clampable round pipe diameter in mm: | 200 - 2,032 | 200 - 2,540 | 200 - 3,048 | 200 - 3,556 | 200 - 4,064 | |
| Max. size of chuck opening in mm: |
950 | 1,200 | 1,200 | 1,500 | 1,500 | |
| Min. - max. clampable square & rectangular pipes dimension in mm: | - | - | - | - | - | |
| Min. - max. clampable beams width in mm: | - | - | - | - | - | |
| Min. - max. clampable diameter for dished ends in mm: | 200 - 2,032 | 200 - 2,540 | 200 - 3,048 | 200 - 3,556 | 200 - 4,064 | |
| Min. - max. cuttable work- piece length in mm: * | 300 - 30,000 | 300 - 30,000 | 300 - 30,000 | 300 - 30,000 | 300 - 30,000 | |
| Min. - max. wall thickness in mm for cutting with oxy-fuel /plasma in mm: * | 5-180 / 1-80 |
5-180 / 1-80 |
5-180 / 1-80 |
5-180 / 1-80 |
5-180 / 1-80 |
|
| Max. torch angle in °: | +/- 70 / 45 | +/- 70 / 45 | +/- 70 / 45 | +/- 70 / 45 | +/- 70 / 45 |
* With torch in vertical position
